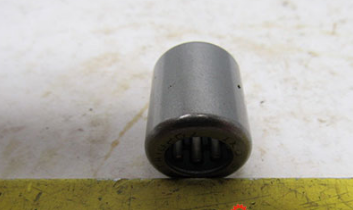

IKO Number: TA 1020Z

Mass (Ref.): 15.4 g

Assembled inner ring:

Fw: 10 mm

D: 17 mm

C: 20 mm

Shaft dia. h6max.: 10 mm

Shaft dia. h6min.: 9.991 mm

Housing bore dia. J7max.: 17.01 mm

Housing bore dia. J7min.: 16.992 mm

Dynamic, C: 9.99 kN

Static, C0: 11.7 kN

Allowable rotational speed: 40000 rpm
